Introducing the BrewBlast™ – Nitro Gas Dispense System, designed specifically for nitrogen infused cold brew coffee applications. Engineered with the most efficient Nitrogen gas separation technology and the smallest available footprint, the BrewBlast™ produces ultra-pure nitrogen gas for pouring cold brew coffee. Generate nitrogen on-demand and ensure your cold brew tastes just as the brewer intended.
BrewBlast™ – Nitro Gas Dispense System
Dual-bed PSA Nitrogen Generation Technology
The BrewBlast™ provides the highest quality Nitrogen gas by utilizing the only dual-bed Pressure Swing Adsorption (PSA) technology available on the market. This design is more efficient, less demanding of internal components, and lasts up to 50% longer than competing membrane designs. See below for more information regarding BrewBlast™ models, resources and specifications.
BrewBlast® 70CPH – SMT Side Mount Tank
Dispenses up to 70 cups/hour* (5 hr. surge)
| N2 Purity | 99.8%+ |
| Technology | Dual-bed PSA |
| N2 Production | 2.5 SCFH |
| Max. cups/hr* | 70 |
| N2 Receiver Tank | 3 Gallons, Mounted to Side |
| Mounting | Wall |
| Electrical Amps | 110V, 15 Amps |
| Dimensions N2 Generator (h x w x d) | 30″ x 13″ x 10″ |
| Weight N2 Generator | 75 lbs |
*Calculations will vary based on keg pressure and the CO2/Nitrogen (N2) blend
Documents & Resources
70CPH Model
BrewBlast® 110CPH
Dispenses up to 110 cups/hour* (5 hr. surge)
| N2 Purity | 99.8%+ |
| Technology | Dual-bed PSA |
| N2 Production | 5.2 SCFH |
| Max. cups/hour* | 110 |
| N2 Receiver Tank | 28 Gallons |
| Mounting | Wall/Tank |
| Electrical Amps | 110V, 15 Amps |
| Dimensions N2 Generator (h x w x d) | 30″ x 13″ x 10″ |
| Weight N2 Generator | 85 lbs |
*Calculations will vary based on keg pressure and the CO2/Nitrogen (N2) blend
Documents & Resources
110CPH Model
BrewBlast® 110CPH-P Floor Mounted on Casters
Dispenses up to 110 cups/hour* (5 hr. surge)
| N2 Purity | 99.8%+ |
| Technology | Membrane |
| N2 Production | 4.2 SCFH |
| Max. cups/hour* | 110 |
| N2 Receiver Tank | Internal 1.5 gallons |
| Mounting | Floor |
| Electrical Amps | 120V, 6 Amps |
| Dimensions N2 Generator (h x w x d) | 9” x 20” x 22” |
| Weight N2 Generator | 75 lbs |
*Calculations will vary based on keg pressure and the CO2/Nitrogen (N2) blend
Documents & Resources
110CPH-M Model

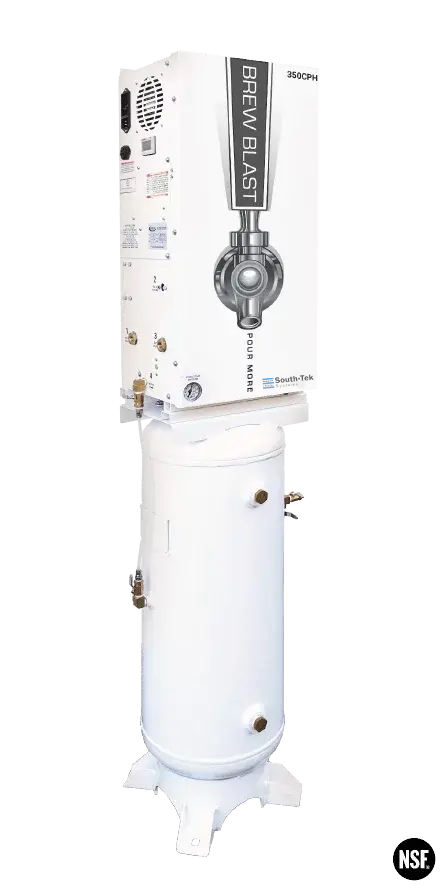

BrewBlast® 350CPH
Dispenses up to 350 cups/hour* (5 hr. surge)
| N2 Purity | 99.8%+ |
| Technology | Dual-bed PSA |
| N2 Production | 14 SCFH |
| Max. cups/hour* | 350 |
| N2 Receiver Tank | 28 Gallons |
| Mounting | Wall/Tank |
| Electrical Amps | 110V, 15 Amps |
| Dimensions N2 Generator (h x w x d) | 30″ x 13″ x 10″ |
| Weight N2 Generator | 85 lbs |
*Calculations will vary based on keg pressure and the CO2/Nitrogen (N2) blend
Documents & Resources
350CPH Model
For more information on our nitrogen generator products, please call us today to speak with a South-Tek Systems representative: (888) 526-6284
