High-Pressure Mission-Critical Nitrogen™ Generators for the Military

REQUEST A QUOTE

NITROGEN SOLUTIONS THAT ARE READY WHEN YOU ARE

Self-sustainable high-pressure nitrogen generator solutions engineered with critical military needs in mind.

South-Tek Systems has been supplying U.S. warfighters and soldiers with reliable nitrogen generators since 2006. We offer garrison, stationary systems and deployable expeditionary options. South-Tek Systems specializes in high-pressure and low-pressure Nitrogen solutions that keep up with the demands and standards of the U.S. military.

NITROGEN IS ALL WE DO, SO YOU CAN DO MORE.

LEARN MORE

KEY FEATURES

YOUR MISSION-CRITICAL JOB, SIMPLIFIED WITH HIGH-PRESSURE NITROGEN GENERATORS

High-pressure nitrogen generators play an essential role in supporting modern military equipment. Maximizing readiness with on-premise nitrogen production ensures mission critical nitrogen when it matters most. South-Tek’s high-pressure systems are designed to reliably support the following applications:

Fill high-pressure gas suspensions in JLTV, Stryker and other light-to-medium combat vehicles

Maintain pressure in M-777 recoil systems

Pressurize fire suppression cylinders

Fill vehicle and aircraft tires and struts and flight line backpack cylinders

Provide backup ready-to-fill nitrogen supply via included cylinder

Any other high-pressure use

Tough and Reliable

Your job can take you to the most remote parts of the world. Running out of nitrogen can mean a breakdown of infrastructure and equipment, and, depending on your supply chain, can leave you scrambling to find a nitrogen supplier.

By switching from nitrogen delivery to on-premise production, you eliminate dependency and minimize risk, empowering you to take control and champion readiness.

South-Tek Systems high-pressure nitrogen generators are built and tested to be as tough and dependable as the men and women using them. Check out our high-pressure line of systems that meet a wide range of military applications:

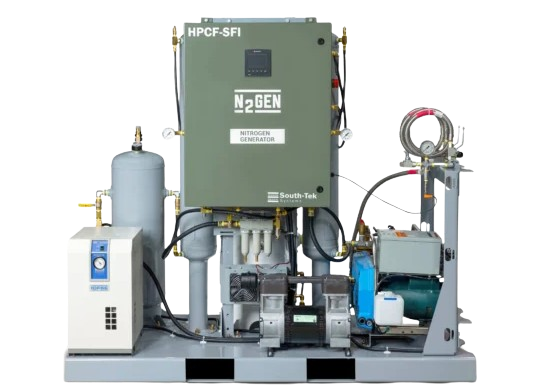

N2GEN HPCF-SFI/SXC

close
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

N2GEN HPCF-SFI/SXC

  • High-pressure, gas vehicle suspensions
  • M777 recoil systems
  • Vehicle and aircraft tires and struts
  • Backpack systems (NBK and similar)
  • Refill fire suppression cylinders
  • Cylinder fill for backup N2 supplies
  • Any other high- or low-pressure use
  • Download Datasheet
REQUEST A QUOTE

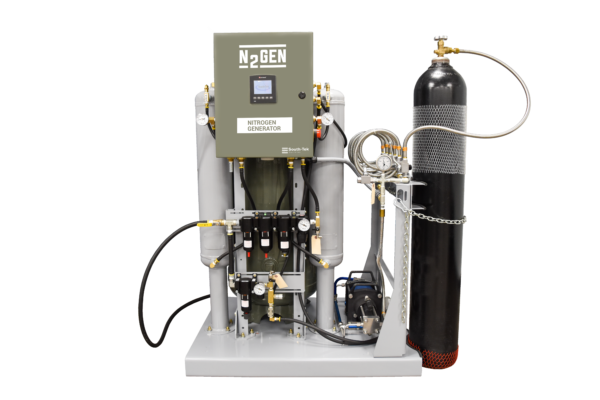

N2GEN HPCF-K0

close
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

N2GEN HPCF-K0

  • Built-in, user friendly PLC with 3.5" color touchscreen
  • Manual start/stop capability
  • Auto-off when cylinder fill is complete
  • Attached fill stand with 2, 4 or 6 high pressure leads and stability straps
  • Fill alternate size cylinders up to 2200 psig or 3000 psig
  • Integrated, low maintenance, air powered N2 booster
  • Easily connects to external source of required compressed air (not included)
  • Download Datasheet
REQUEST A QUOTE

N2GEN HPCD-01D

close
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

N2GEN HPCD-01D

  • Heavy duty weather-proof case with protectors to shield from water
  • Fully integrated, self-contained system, with twin oil free air compressors, heavy-duty N2 membrane separator, low pressure N2 tank, and two stage direct drive booster
  • Auto shutoff, inlet/outlet gauges, hour meter
  • 9" diameter, high tread rubber wheels with extended handles on opposite end for easy transport across various terrain
  • Fold out, pin lock, wheel assembly that easily folds out of the way for lifting and transport
  • Download Datasheet
REQUEST A QUOTE

Greater Control at Lower Costs

ELIMINATE DOWNTIME; PLAN AND BUDGET WITH CONFIDENCE.

The United States Military demands the best. South-Tek high-pressure nitrogen generators provide:

  • Compact integrated design
  • No hazardous storage or connections
  • Low gas generating cost
  • Low operating cost
  • Easy installation
  • Full access doors for easy maintenance

Robust and Portable Solution for Military Applications

SOUTH-TEK SYSTEMS CHAMPIONS TWO TOP PRIORITIES IN SUPPLYING THE UNITED STATES MILITARY:

CONVENIENT NITROGEN SUPPLY WHEREVER YOU ARE

PORTABILITY FOR WHEN LOCATIONS CHANGE - FAST

Stand Ready With High-Pressure Nitrogen Generators Where and When You Need Them

South-Tek Systems high-pressure N2Gen HPCD-01D and low-pressure N2Gen 4-HC were designed with these mission-critical priorities in mind. Deployable nitrogen generators provide on-premise generation – wherever your mission takes you.

Cost-Effective Nitrogen Gas Solutions for Remote Locations

Access to nitrogen can be an expensive, time-intensive process for military members across the globe. On-premise nitrogen generation provides greater control at lower costs. With South-Tek Systems’ high-pressure nitrogen generators, nitrogen is readily available whenever it’s needed.

If maintenance is needed, all South-Tek high-pressure nitrogen generators are designed to be easily serviced with doors for ease-of-access and intuitive controls. Since 2006, South-Tek Systems has delivered reliable nitrogen gas generators and provided superior customer service to the United States military, earning the reputation of the leading nitrogen expert.

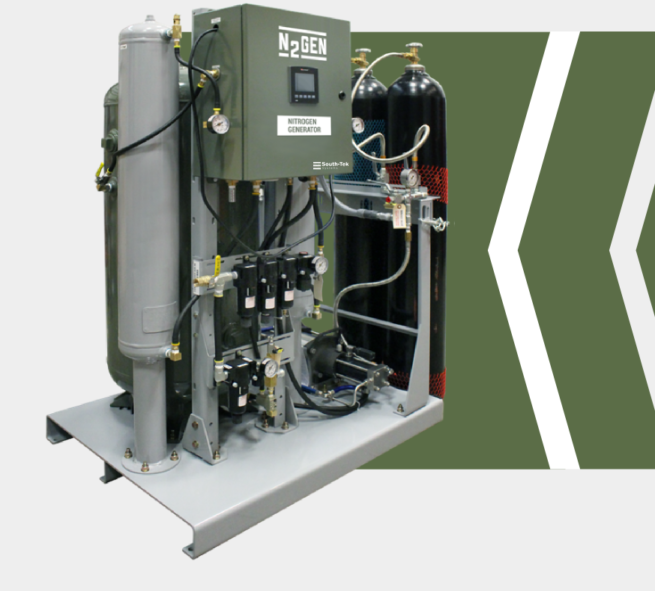

Nitrogen Bottle Filling Skid

Stationary skids produce high quality, clean, dry nitrogen for filling bottles at your shop and eliminate reliance on outside gas suppliers. With the N2GEN HPCF-K0 series of N2 generators, a low pressure N2 tank, air powered booster and cylinder fill stand are conveniently incorporated onto a compact skid. Stationary models are designed for shop or shelter, and are easily integrated with containerized tool shops and kits. Stationary systems require a separate source of clean, dry compressed air, and can be configured to deliver either 2200 or 3000 psig fill pressure. Models are available to fill 2, 4 or 6 N2 cylinders within 24 hours. Complete air compressor systems are available if needed, and can be packaged with the N2 skids for a turnkey system.

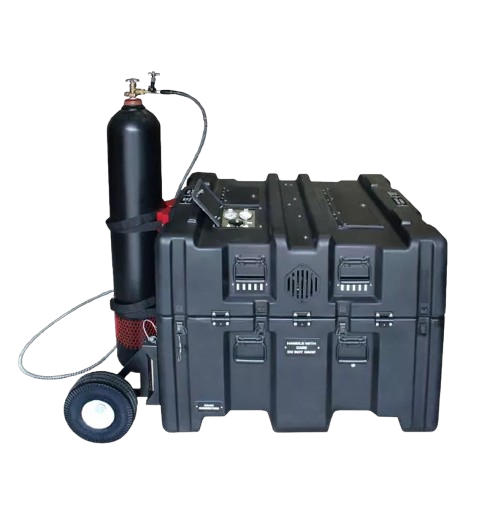

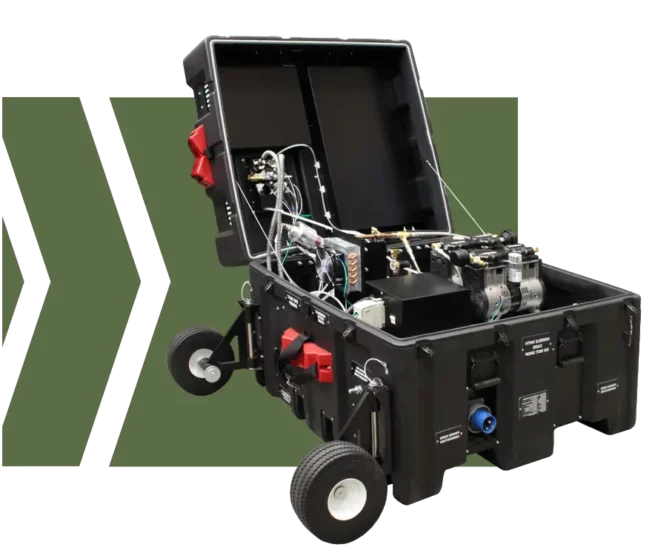

Deployable Nitrogen Generator

GENERATE MISSION-CRITICAL NITROGEN ON-DEMAND
Designed to provide high pressure, oil-free nitrogen on demand in all types of field conditions, on flight lines, and in mobile or fixed shops, the HPCD-01D Deployable Nitrogen Generator is a fully integrated system housed in a hard case for protection. The system is capable of filling a single cylinder to either 2200 or 3500 psig and includes a N2 generator, low pressure tank, twin oil-free air compressors, gas booster and high pressure fill lines.

High-Pressure Nitrogen On-Demand

DESIGNED FOR FIELD CONDITIONS AND FLIGHT-LINES
Robust, rock-solid design enables South-Tek Systems high-pressure nitrogen generators to generate excellence, every time. Our wide variety of nitrogen generator solutions enable U.S. armed service men and women to reliably deliver nitrogen where and when they need it, for the long haul.
DOWNLOAD PRODUCT GUIDE

FAQs for High-Pressure Nitrogen Generators for Military Application

What are the major differences between a high- and low-pressure nitrogen generator?

A high-pressure nitrogen generator and low-pressure nitrogen generator both produce the same nitrogen gas, but different methods enable them to produce nitrogen at vastly different pressures.

High-pressure nitrogen generators like the N2GEN HPCD-01D and N2GEN HPCF-KO produce nitrogen from 2,200 to 3,500 psig while low-pressure generators produce nitrogen from 80 to 100 psig.

At high pressures, nitrogen condenses into its liquid state which is much more compact than nitrogen gas.

Military-grade high-pressure nitrogen generators can be used in various applications including:

  • Fill vehicle and aircraft tires and struts;

  • Fill high-pressure, gas suspensions;

  • Maintain pressure in firing chambers and recoil systems;

  • Pressurize fire suppression systems;

  • Refill fire extinguisher systems;

  • Provide backup ready-to-fill nitrogen supply via included cylinder;

  • Support JLTV and Stryker hydro-pneumatic, independent suspension systems and;

  • Any other high-pressure uses.

A nitrogen generator’s production of nitrogen gas is advantageous for various reasons. Without nitrogen gas, regular air takes it’s place. Air contains oxygen and water vapor which can wreak havoc on military equipment that needs to be reliable when it matters most.

Additionally, nitrogen generators are convenient, without a nitrogen generator to provide a continuous supply of nitrogen gas, cylinder delivery and management must be relied upon. Disadvantages of nitrogen generators include the up-front cost, which is more significant than ordering individual cylinders of nitrogen in the short-term, but pays off in the long run.

South-Tek Systems nitrogen generators are built for the field and extreme conditions. South-Tek Systems’ models require little maintenance and can be depended upon around the world no matter the terrain.
